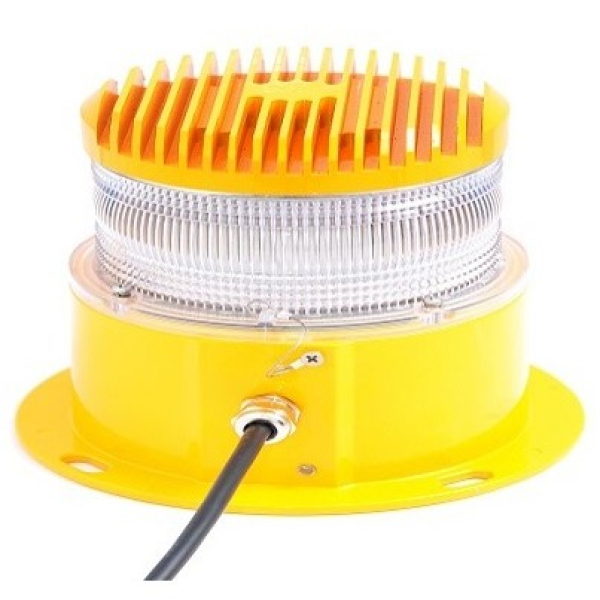

YML2000C LED Based Medium Intensity Aviation Obstruction Light / YML2000C Светодиодный авиационный заградительный огонь средней интенсивности

YML2000c is a new generation medium intensity aviation obstruction light ,Compare with YML2000B it has more intensity,better heat dissipation and efficiency is higher. this style also can be customized as red and white, white light during the day,red light during the night. Our products work under AC voltage from 110V to 380VAC , Our products work under DC voltage from 24V to 60V. It comes with compact-size and light-weight, which makes installation job nice & easy.

YML2000c Medium intensity aviation obstruction light （Type B） for marking Towers (Telecom, GSM), Smokestacks, Buildings and any other potentially hazardous obstructions t air traffic with a flashing red safety light. Compliant to ICAO standard.

The enclosure of YML2000c is made of die casting aluminum with powder coated finish, light weight, waterproof, shockproof and corrosion resistant. Self-contained wiring compartment, ease of mount. Steel wire is used to connect to base against falling in operation.

Functions & Features • Based on LED technology, meets optics standard. • Built-in circuit protect LED, extremely reliable and cost saving. • Shockproof and corrosion resistant. Working environment temperature ：-40℃ ~ +60℃，It can be used in very poor conditions . • It contains connection box and installation with conventional screw. • PC lamp housing with the sound impact resistance, thermal stability and luster effect. A variety of installation is aviation. • Sealing material: waterproof sealing ring. • Combustibility rating：UL94-V0. • Flashing mode or stead burning is available and it do not need controller. • LED is aviation special red color，Typical LED lifetime is more than 100，000 hours. • With high power LED，and LED parallel connect, with low voltage constant current power supply, any LED fault will not affect others, with high stable and reliable of the lights. Installation and Operation • Secure the light on a smooth surface which has enough strength, if there is no mounting surface, we can customize special mounting bracket as request. • When installation, please stay away the nearby light source, at the same time, ensure the photocell do not cover by the near object. • Make sure the power supply can match the rated power of light before connecting. • Insert the power cable from the gland box and then connect them to the corresponding terminals inside the lamp body. • Check whether the power cables are connected correctly before power on. Notice • Check whether the power cables are connected correctly before power on • Please do not open the control box by yourself connecting terminal

Order codes

Series

Siger/Double

AC/DC( 交流、直流）

Flashing

Photosensor

Alarm

relay

Pattern(For double light only)

YML2000C

S （单灯）

A

F( 闪烁）

P

R

ST （工作 + 备用）

D （双灯）

D

S ( 常亮）

SS （工作 + 工作）

For example YML2000CDASPRST means AC-YML2000C works in “Service+Standby” With Photosensor with alarm relay output .This style can be customized white light during the day time,red light during night time. YML2000CSDXXX aviation obstruction lighting all can work at DC24~DC60.
