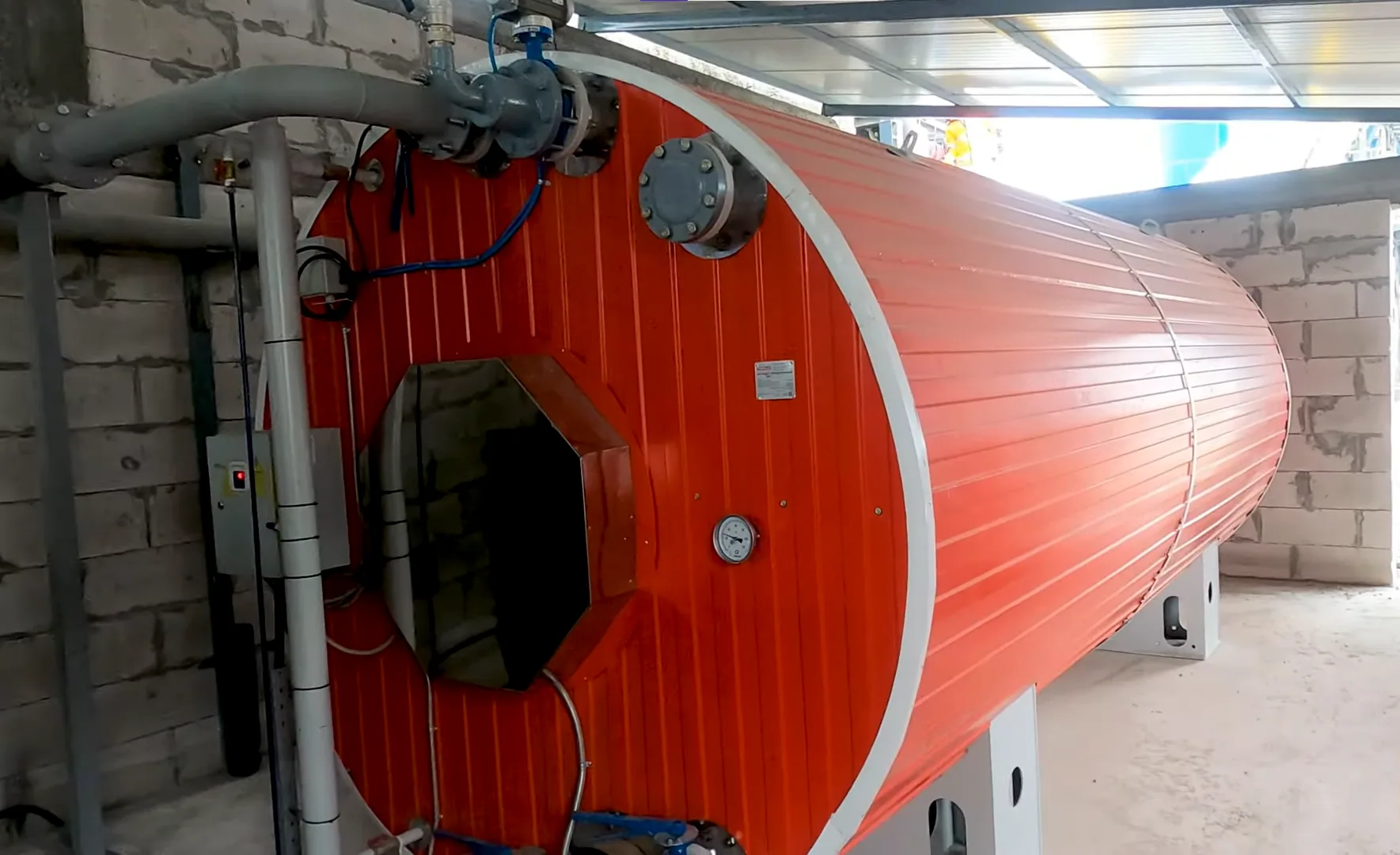

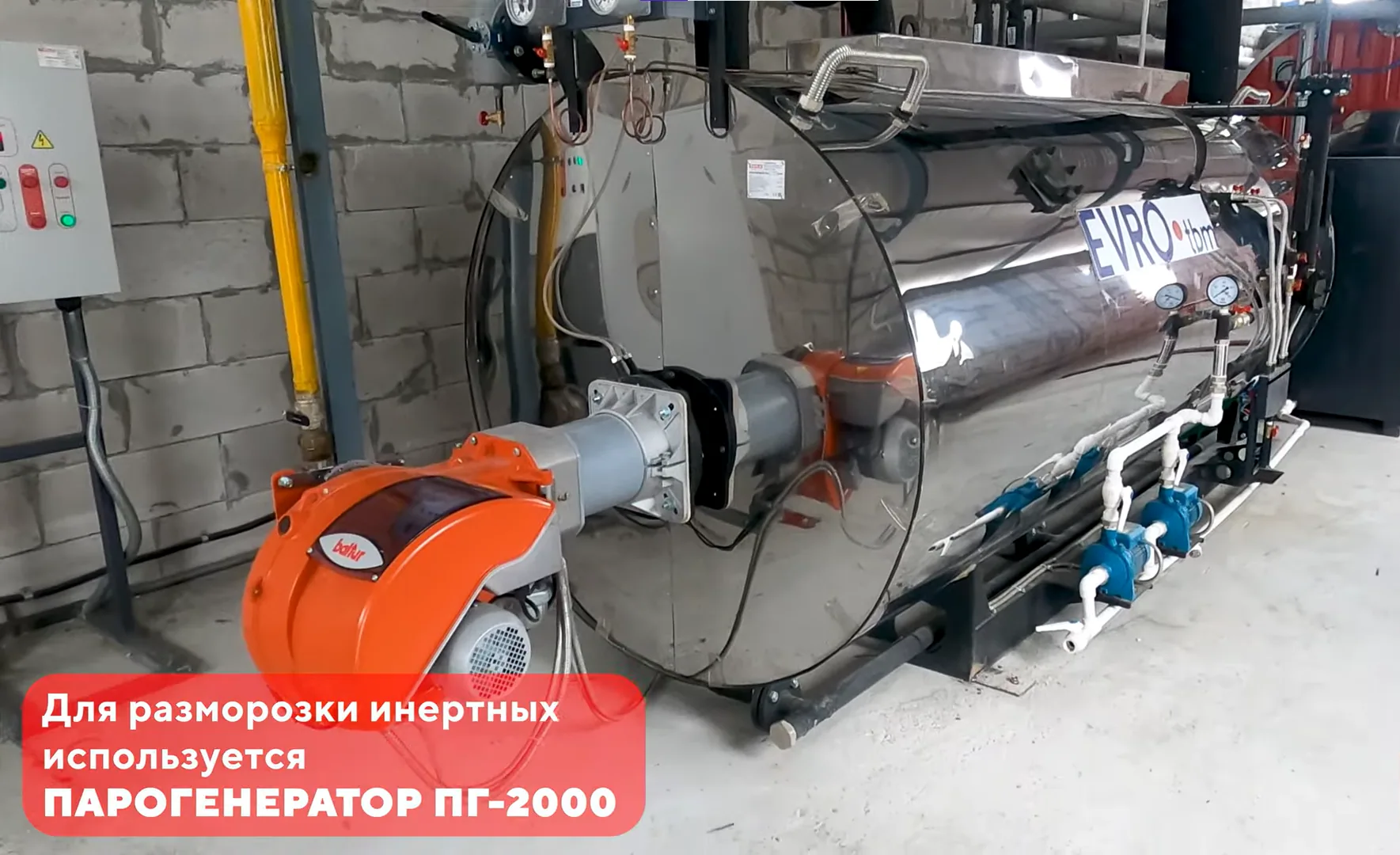

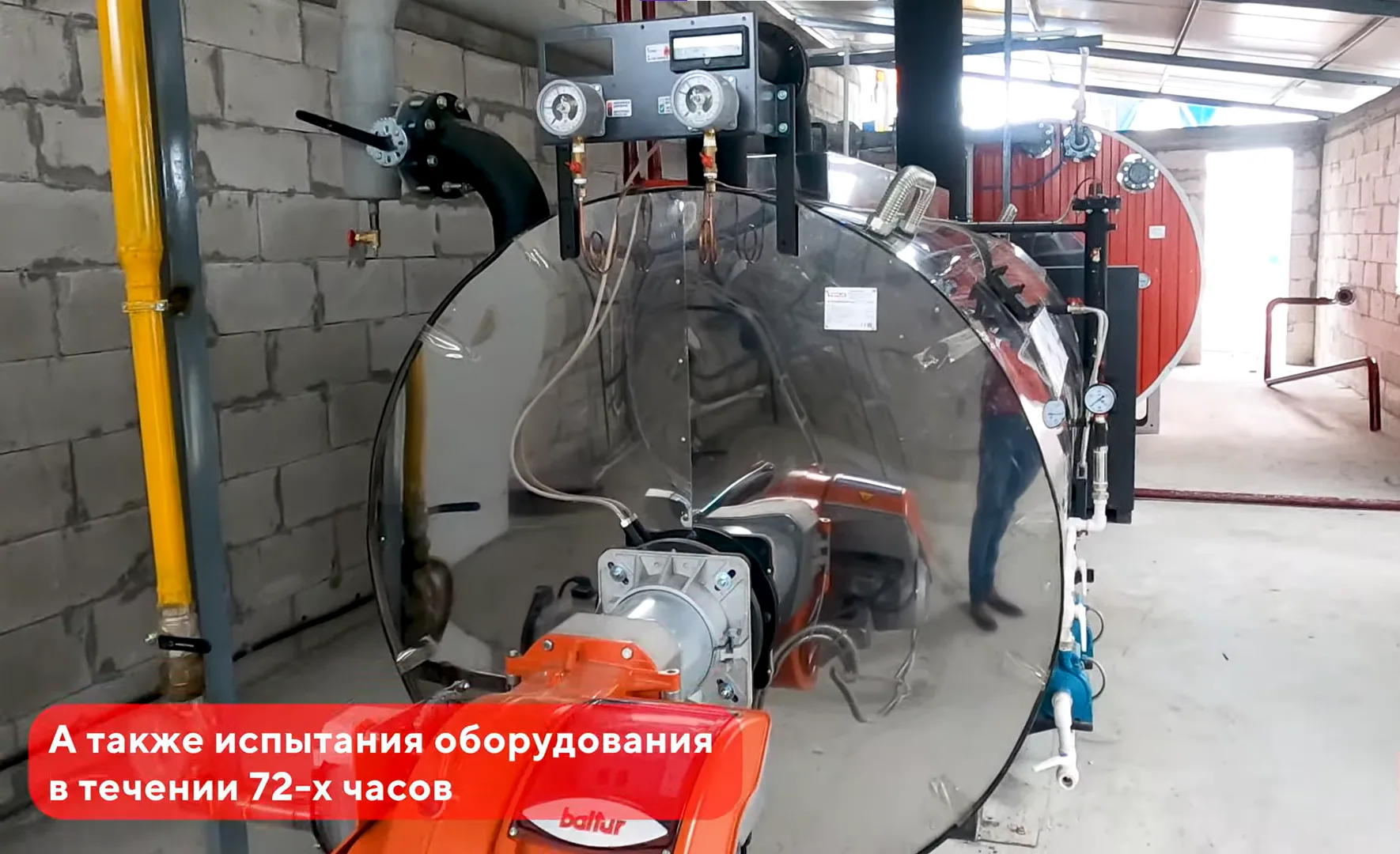

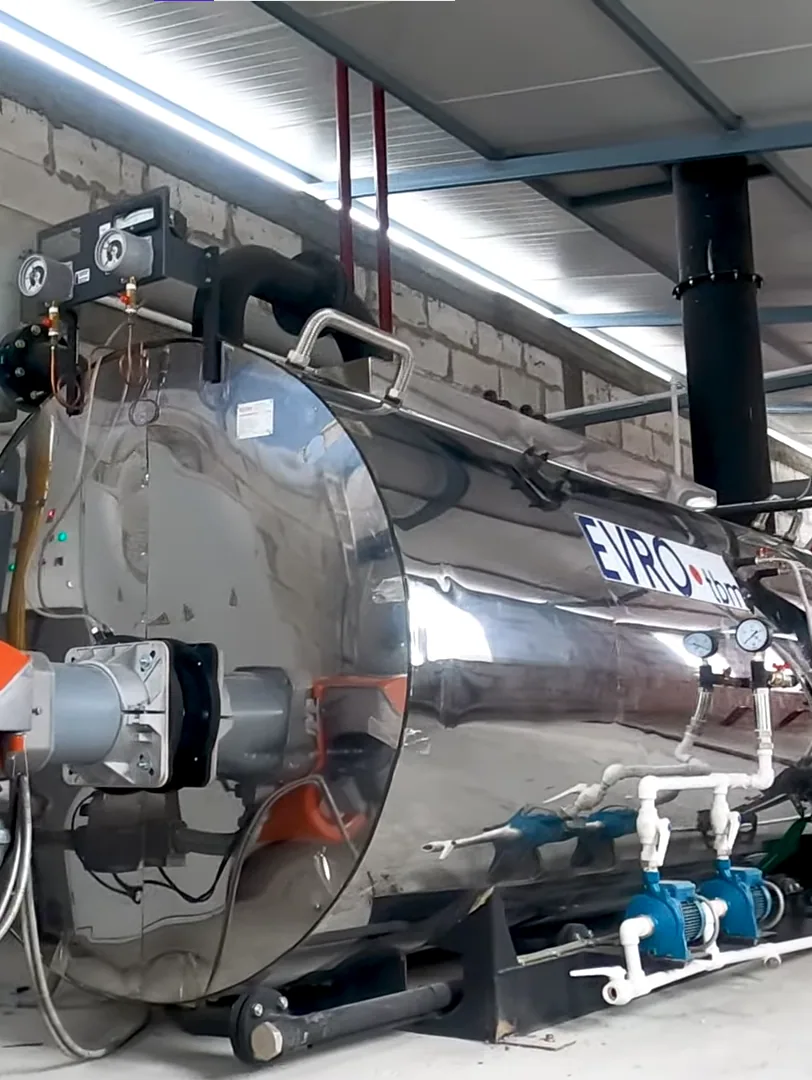

Steam generator PG-2000 for a concrete plant - 2000 kg/h of steam

The PG-2000 steam generator for a concrete plant produces 2,000 kg/hour of steam. It is designed to heat aggregates and accelerate concrete curing.

Advantages:

• Works on natural gas

• Efficiency – 91%

• Steam temperature - up to +110 °C

• Working pressure – up to 0.05 MPa (0.5 kgf/cm²)

• An effective solution for winter concreting

• Warranty, service and availability of spare parts in Uzbekistan

Purpose and application:

The steam generator is designed to generate steam at temperatures up to 110°C with excess pressure up to 0.05 MPa. It is used for:

• heating of inert materials (sand, crushed stone, screenings, etc.)

• acceleration of concrete hardening

• agricultural tasks (feed processing)

• pasteurization of milk

• hot water supply and heating (via boiler)

Equipment:

Horizontal water tank with a capacity of 15 m³

Steam pipe included

The PG-2000 steam generator is a high-performance industrial unit specifically designed for concrete plants and other construction sites. With a high steam output (2,000 kg/h), it efficiently supplies the necessary heat for aggregates and water, ensuring optimal concrete production even in low temperatures. This unit features rapid steam generation, high operational reliability, and modern automation for ease of use and safety.

Its compact design and robust construction make it the ideal solution for increasing productivity and maintaining quality standards on any construction site requiring a continuous supply of steam.
